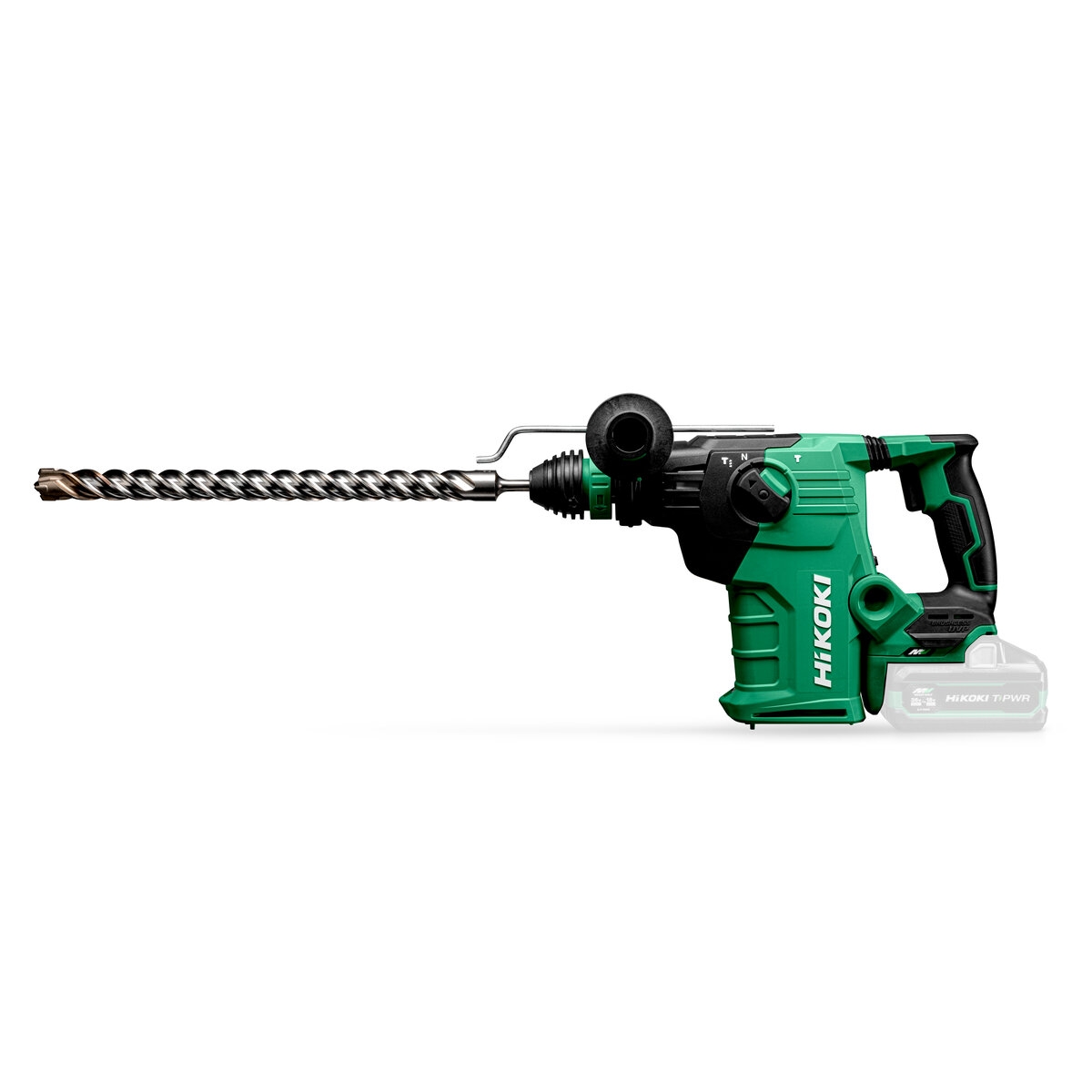

Rotary Hammer SDS-Plus DH3635DCW2Z

36 V brushless SDS-Plus cordless combination hammer for powerful hammer drilling in concrete up to Ø 35 mm

  • Combination hammer with 3 functions: hammer drilling, drilling and chiselling
  • Quick change between SDS-Plus chuck and keyless chuck (accessory) for extended range of applications with cylindrical drill bits
  • Brushless motor for high power, less wear and a long service life
  • Double safety when the drill bit jams: no kickback thanks to mechanical decoupling plus sensor-controlled shutdown (Reactive Force Control RFC)
  • User Vibration Protection (UVP): designed to minimize vibration levels in all circumstances and to incraese operator comfort
  • Reduction of speed and impact energy possible for starting a drill hole or working in softer materials
  • Integrated LED light for a clear view of the work surface
  • Can be switched to reverse rotation for easy removal of jammed drill bits
  • Ergonomic soft grip handle for optimum control and for longer comfortable working
  • Powerd by MULTI VOLT, the intelligent battery system for 18 V and 36 V power tools: best performance, maximum freedom

For price information, please visit your country’s website or contact your local dealer.

Find a dealer
More information
Articlenumber
DH3635DCW2Z
EAN
4966376421350
Battery voltage
36 V
Impact energy (EPTA)
4.2 J
No load speed
0-810 /min
Full load impact rate
0 - 4350 /min
Drill diameter concrete
3.4 - 35 mm
Drill diameter mild steel
20 mm
Drill diameter wood
30 mm
Weight (without battery pack)
4.4 kg
Tool length
395 mm
Tool width
103 mm
Tool height
235 mm
Application
Full Load Drilling into Concrete
Vibration
13.9 m/sec²
Vibration uncertainty K
1.5 m/sec²
Application
Full Load Chiselling
Vibration
11 m/sec²
Vibration uncertainty K
1.5 m/sec²
Emission sound pressure
93 dB
Emission sound power
101 dB
Emission uncertainty KpA
5 dB
Warranty (months with registration)
36
Right- / left rotation | Forward / reverse rotation
Yes
Slip clutch
Yes
Low vibration handle
Yes
LED light
Yes
The actual product may differ from the picture. Please note the product description, technical data and scope of delivery.
  • Side Handle
  • Depth Gauge
  • Blow Case
