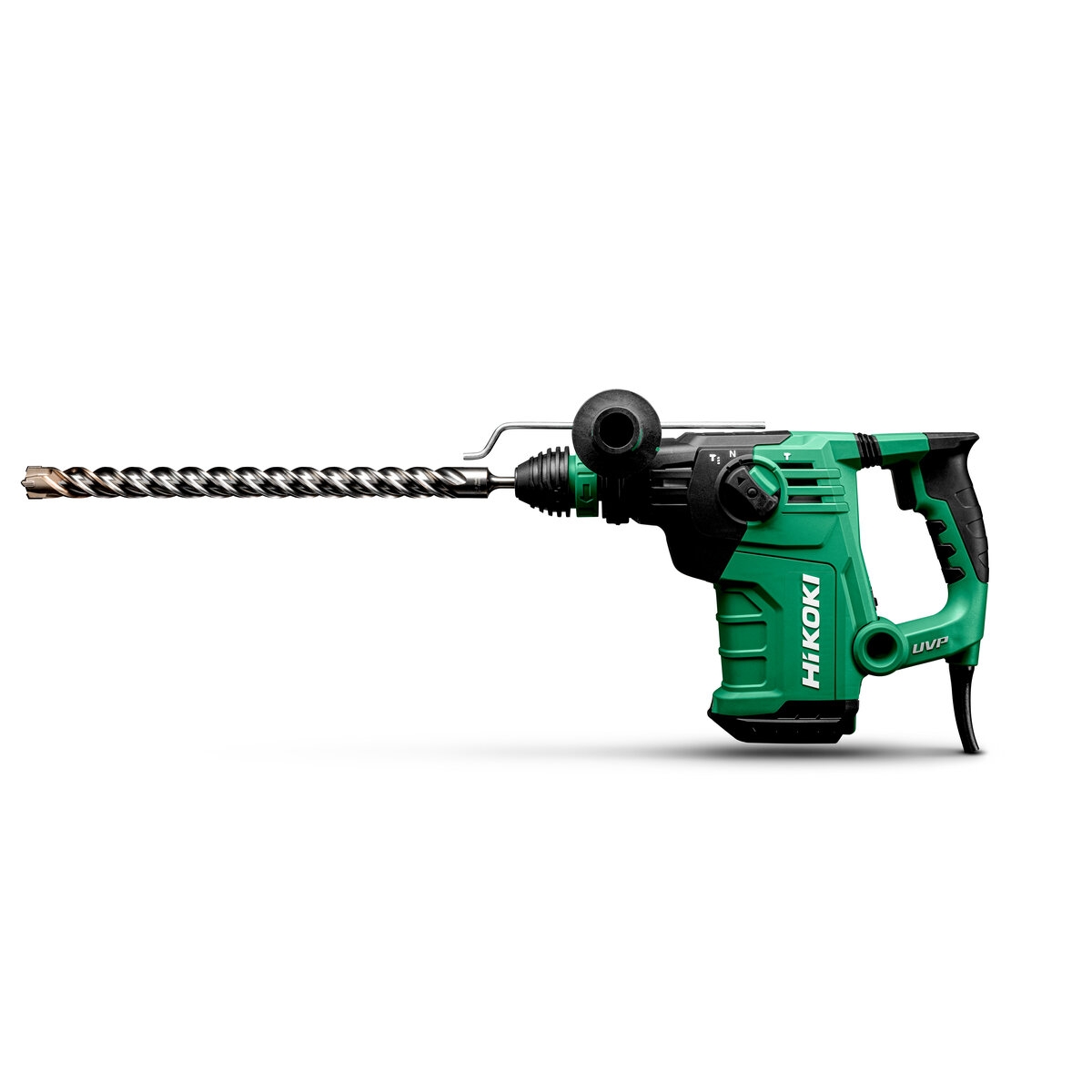

Rotary Hammer SDS-Plus DH35PMCWSZ

SDS-Plus combination hammer for powerful hammer drilling up to Ø 35 mm in concrete

  • Combination hammer with 3 functions: hammer drilling, drilling and chiselling
  • Quick change between SDS-Plus chuck and keyless chuck (accessory) for extended range of applications with cylindrical drill bits
  • Double safety when the drill bit jams: no kickback thanks to mechanical decoupling plus sensor-controlled shutdown (Reactive Force Control RFC)
  • User Vibration Protection (UVP): designed to minimize vibration levels in all circumstances and to increase operator comfort
  • Reduction of speed and impact energy possible for starting a drill hole or working in softer materials
  • Integrated LED light for a clear view of the work surface
  • Can be switched to reverse rotation for easy removal of jammed drill bits
  • Ergonomic soft grip handle for optimum control and for longer comfortable working

For price information, please visit your country’s website or contact your local dealer.

Find a dealer
More information
Articlenumber
DH35PMCWSZ
Tool weight
5 kg
EAN
4966376421381
Impact energy (EPTA)
4.2 J
Slip clutch
Yes
Low vibration handle
Yes
Full load impact rate
0 - 4350 /min
RFC (Reactive Force Control)
Yes

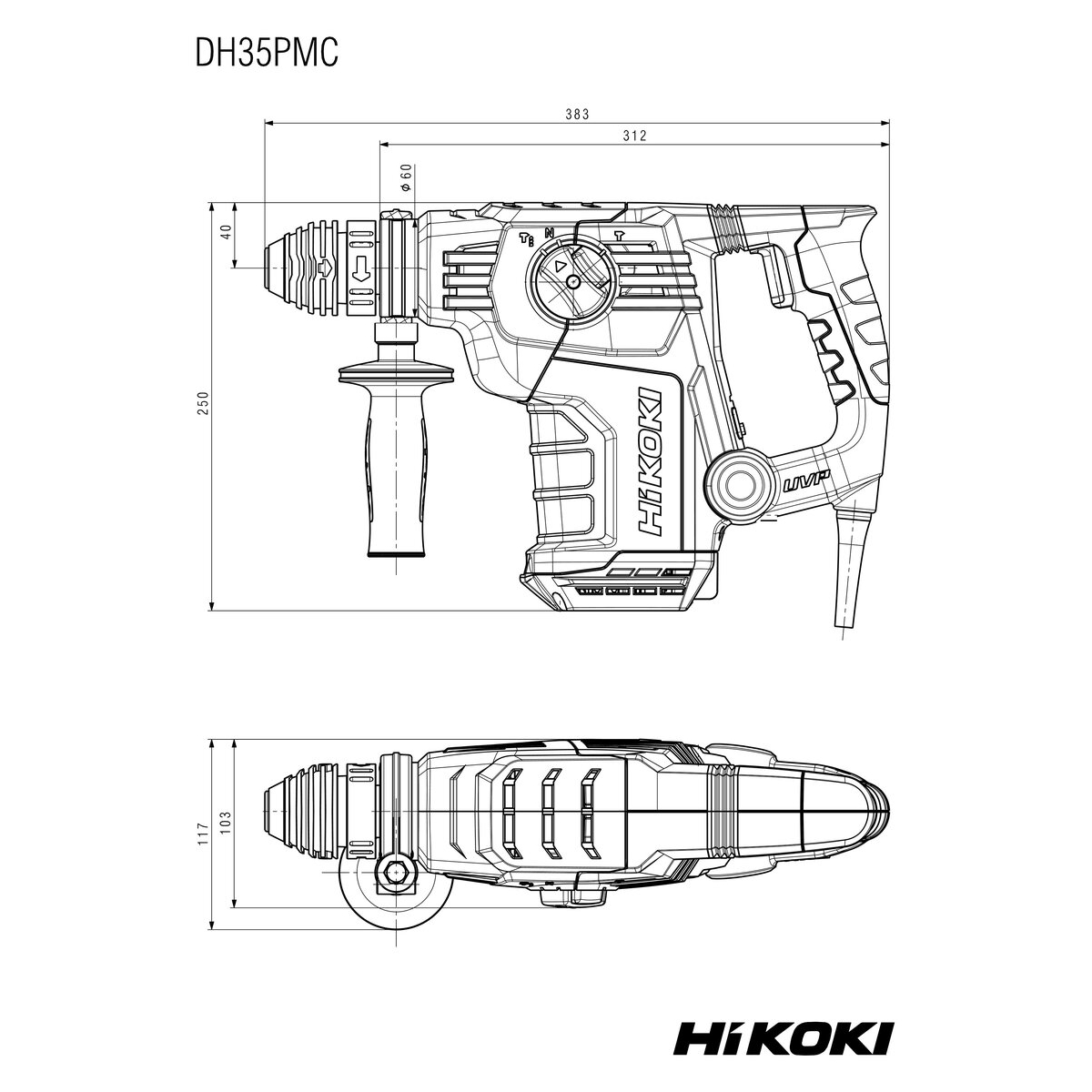

Tool length
383 mm
Tool width
103 mm
Tool height
250 mm
No load speed
0-810 /min
Application
Full Load Drilling into Concrete
Vibration
17.2 m/sec²
Vibration uncertainty K
1.5 m/sec²
Application
Full Load Chiselling
Vibration
12.8 m/sec²
Vibration uncertainty K
1.5 m/sec²
Emission sound power
101 dB
Emission sound pressure
93 dB
Emission uncertainty KpA
3 dB
LED light
Yes
Right- / left rotation | Forward / reverse rotation
Yes
UVP (User Vibration Protection)
Yes
Cable length
3.9 m
Drill diameter concrete
3.4 - 35 mm
Drill diameter mild steel
20 mm
Drill diameter wood
30 mm
Mains frequency
50 Hz
Rated input power
1050 W
Voltage
230 V
Warranty (months with registration)
36
The actual product may differ from the picture. Please note the product description, technical data and scope of delivery.
  • Blow Case
  • Side Handle
  • Depth Gauge
No accessories available
