Rotary hammer SDS-Max DH40MEY2J2Z

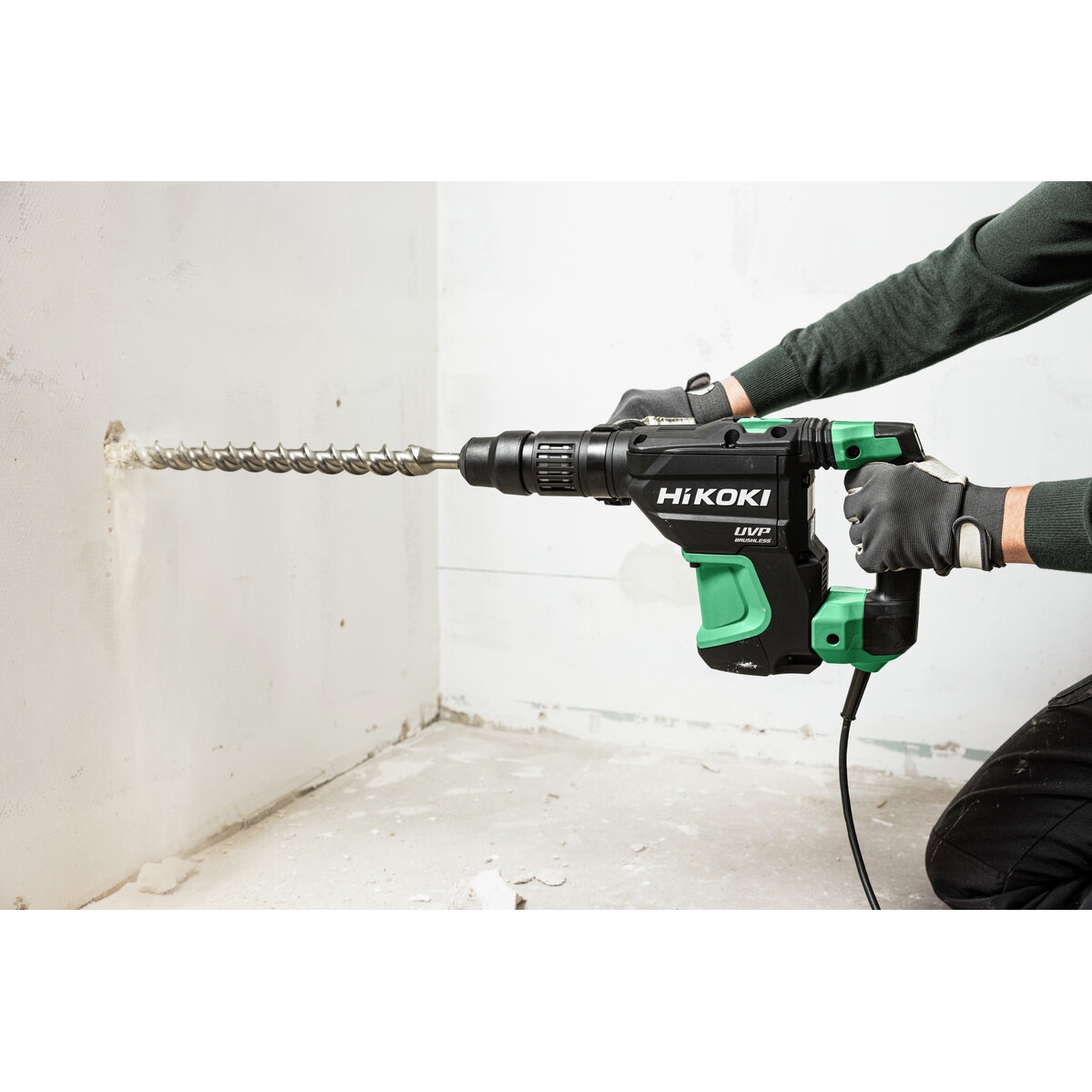

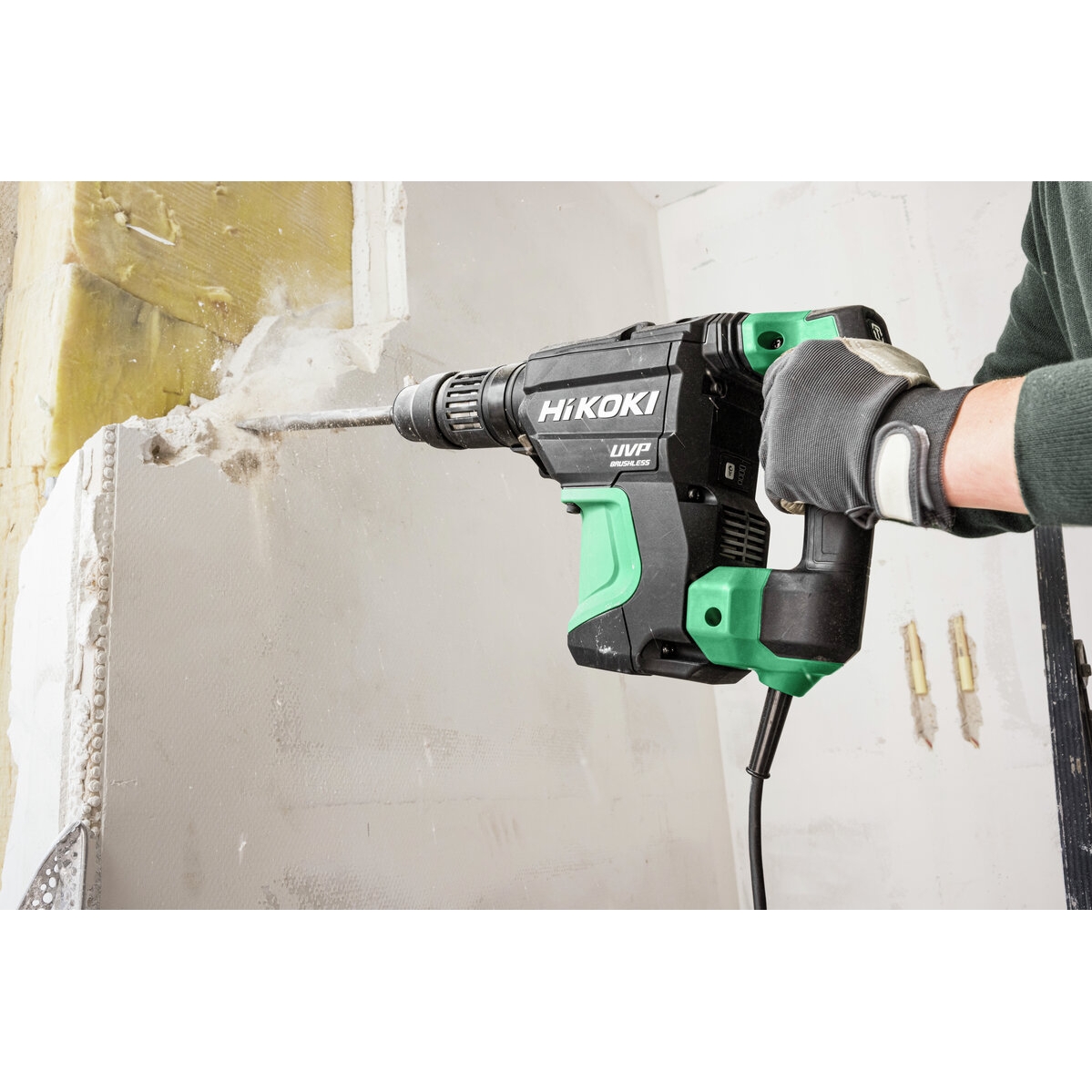

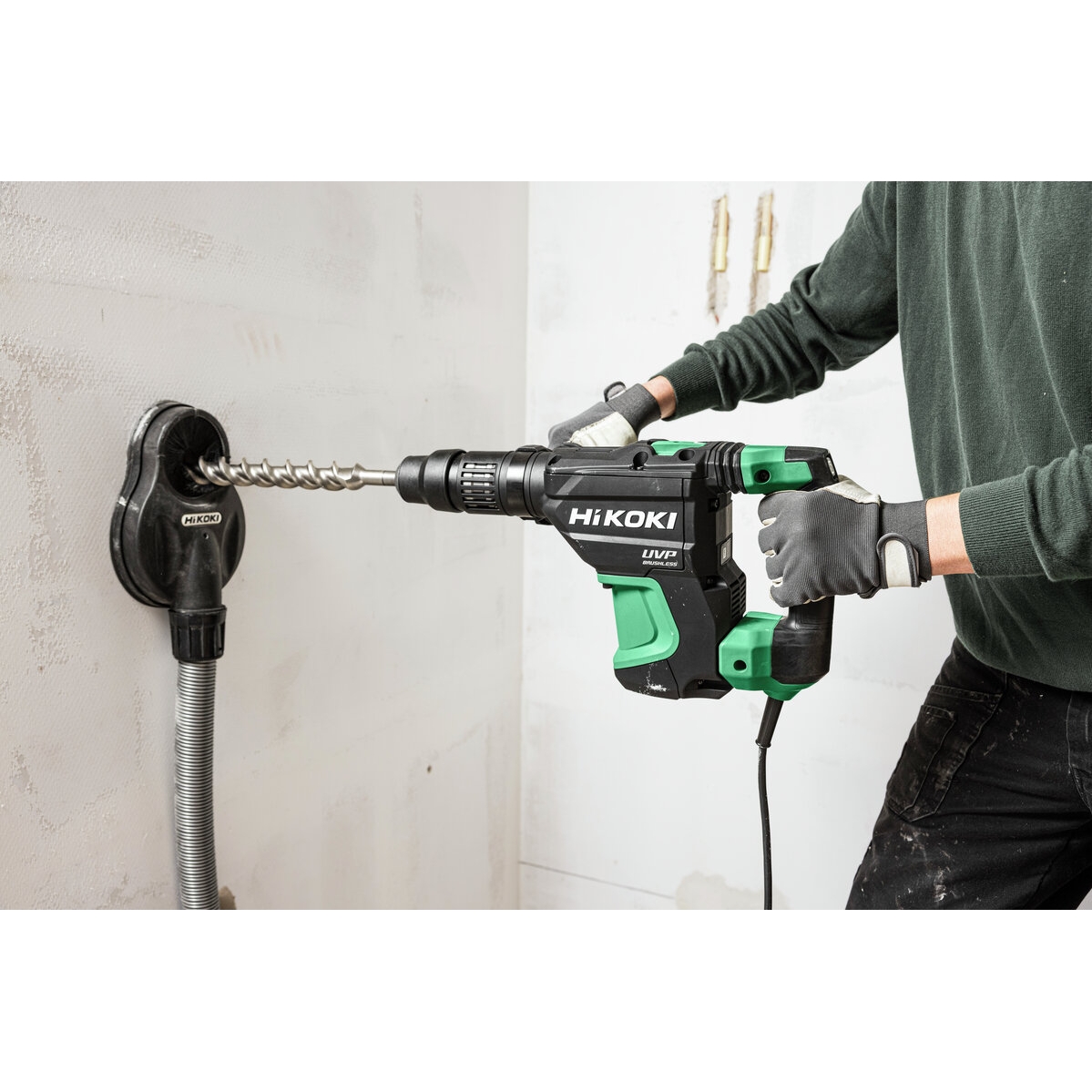

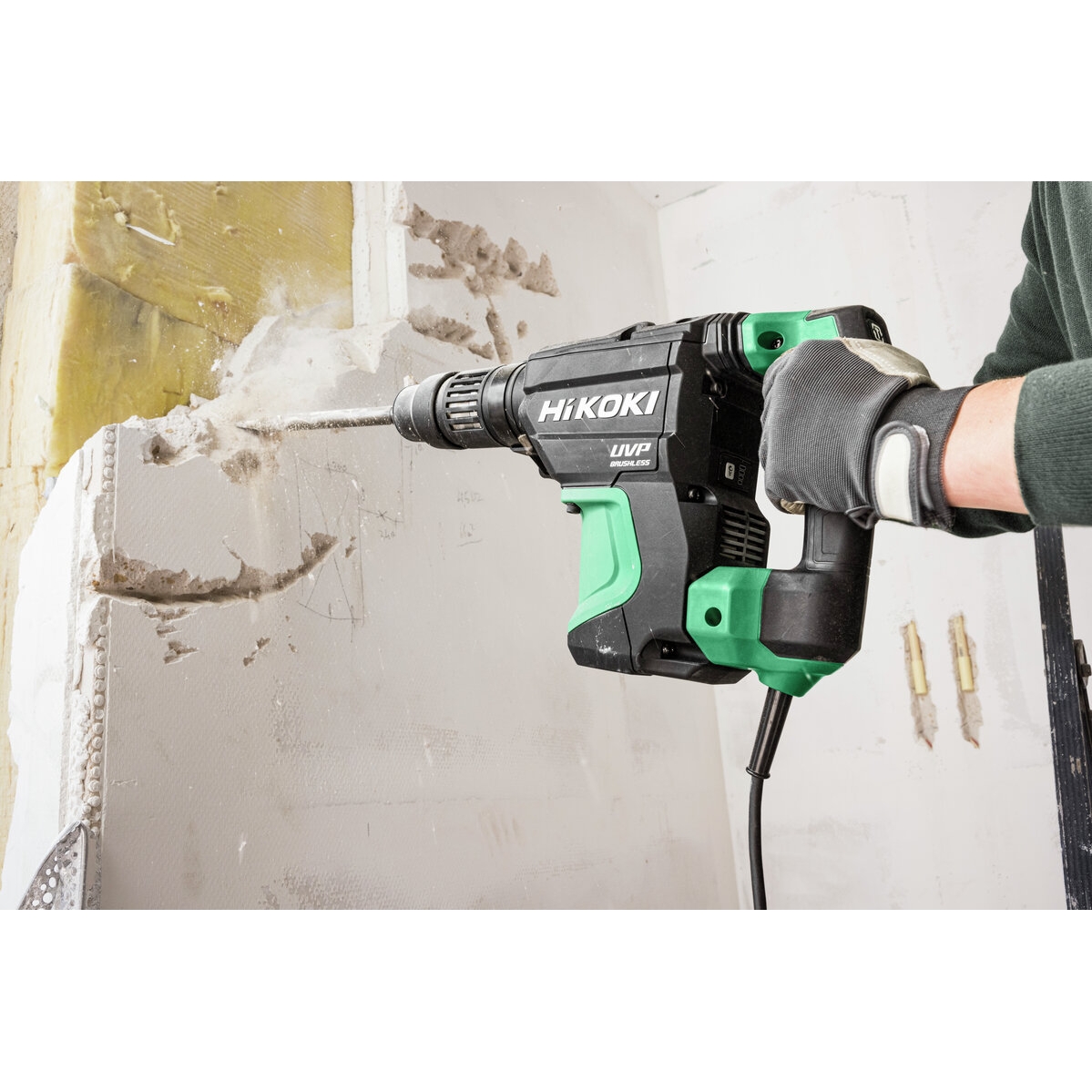

1,150 W Brushless 9.2 J SDS-Max rotary hammer with Low Vibration Handle (LVH) for concrete drilling up to 40 mm

  • 9.2 J of impact energy to perform drilling and demolishing applications fastest in class
  • Lightest tool in its class to keep user fatigue at a minimal level
  • Low Vibration Handle (LVH) for optimal work comfort and grip
  • UVP (User Vibration Protection): low vibration level for the highest degree of operator comfort
  • Reactive Force Control (RFC) stops the motor when the tool bit is suddenly overburdened to reduce twisting of the main unit and prevent potential injury
  • Trigger lock for chiseling allows for easy operation and continuous use
  • Constant speed control delivers extra power allowing the motor to maintain speed under load
  • Variable drilling speed control allows users to change speed to suit application
  • Brushless motor performs stable during voltage drops, compatible with engine generators for uninterrupted productivity off the grid

For price information, please visit your country’s website or contact your local dealer.

Find a dealer
More information
Articlenumber
DH40MEY2J2Z
EAN
4966376407866
Rated input power
1150 W
Voltage
110 V
Mains frequency
50/60 Hz
Impact energy (EPTA)
9.2 J
No load speed
250-500 /min
Full load impact rate
1400 - 2800 /min
Drill diameter concrete
40 mm
Tool weight
6.80 kg
Cable length
4 m
Tool length
471 mm
Tool width
107 mm
Tool height
252 mm
Application
Full Load Drilling into Concrete
Vibration
10.9 m/sec²
Vibration uncertainty K
1.5 m/sec²
Application
Full Load Chiselling
Vibration
10.6 m/sec²
Vibration uncertainty K
1.5 m/sec²
Emission sound pressure
100 dB
Emission sound power
108 dB
Emission uncertainty KpA
3 dB
Warranty (months with registration)
36
UVP (User Vibration Protection)
Yes
RFC (Reactive Force Control)
Yes
Slip clutch
Yes
Lock-on function
Yes
Low vibration handle
Yes
Brushless
Yes
The actual product may differ from the picture. Please note the product description, technical data and scope of delivery.
  • Side Handle
  • Grease
No accessories available
