Rotary Hammer SDS-Max DH40MEY2

  • 9.2 J of impact energy to perform drilling and demolishing applications fastest in class
  • Lightest tool in its class to keep user fatigue at a minimal level
  • Brushless motor performs stable during voltage drops, compatible with engine generators for uninterrupted productivity off the grid
  • UVP (User Vibration Protection): low vibration level for the highest degree of operator comfort
  • Reactive Force Control (RFC) stops the motor when the tool bit is suddenly overburdened to reduce twisting of the main unit and prevent potential injury
  • Trigger lock for chiseling allows for easy operation and continuous use
  • Constant speed control delivers extra power allowing the motor to maintain speed under load
  • Variable drilling speed control allows users to change speed to suit application
  • Low Vibration Handle (LVH) for optimal work comfort and grip

For price information, please visit your country’s website or contact your local dealer.

Find a dealer
More information
Articlenumber
DH40MEY2

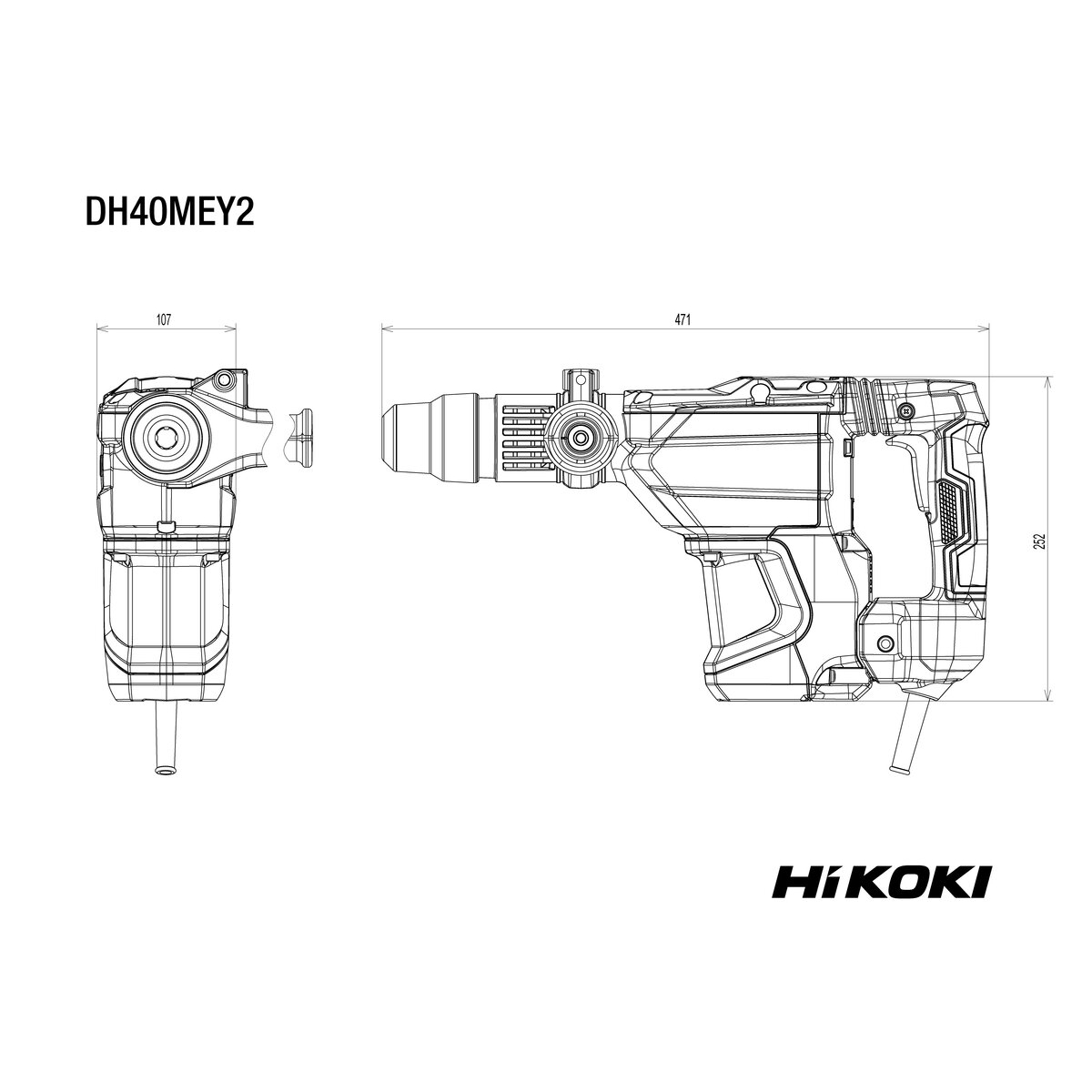

Tool length
471 mm
Tool width
107 mm
Tool height
252 mm
Tool weight
6.80 kg
Constant speed control
Yes
Lock-on function
Yes
Low vibration handle
Yes
RFC (Reactive Force Control)
Yes
Slip clutch
Yes
UVP (User Vibration Protection)
Yes
Cable length
4 m
Cable type
Rubber
Drill diameter concrete
40 mm
Drill diameter concrete core bit
105 mm
Full load impact rate
1400 - 2800 /min
Impact energy (EPTA)
9.2 J
Mains frequency
50/60 Hz
Motor type
Brushless
No load speed
250 - 500 /min
Rated input power
1150 W
Variable speed control type
Other
The actual product may differ from the picture. Please note the product description, technical data and scope of delivery.
  • Side Handle
  • Grease
  • Injection Case
