Miter Saw C10FSB2WAZ

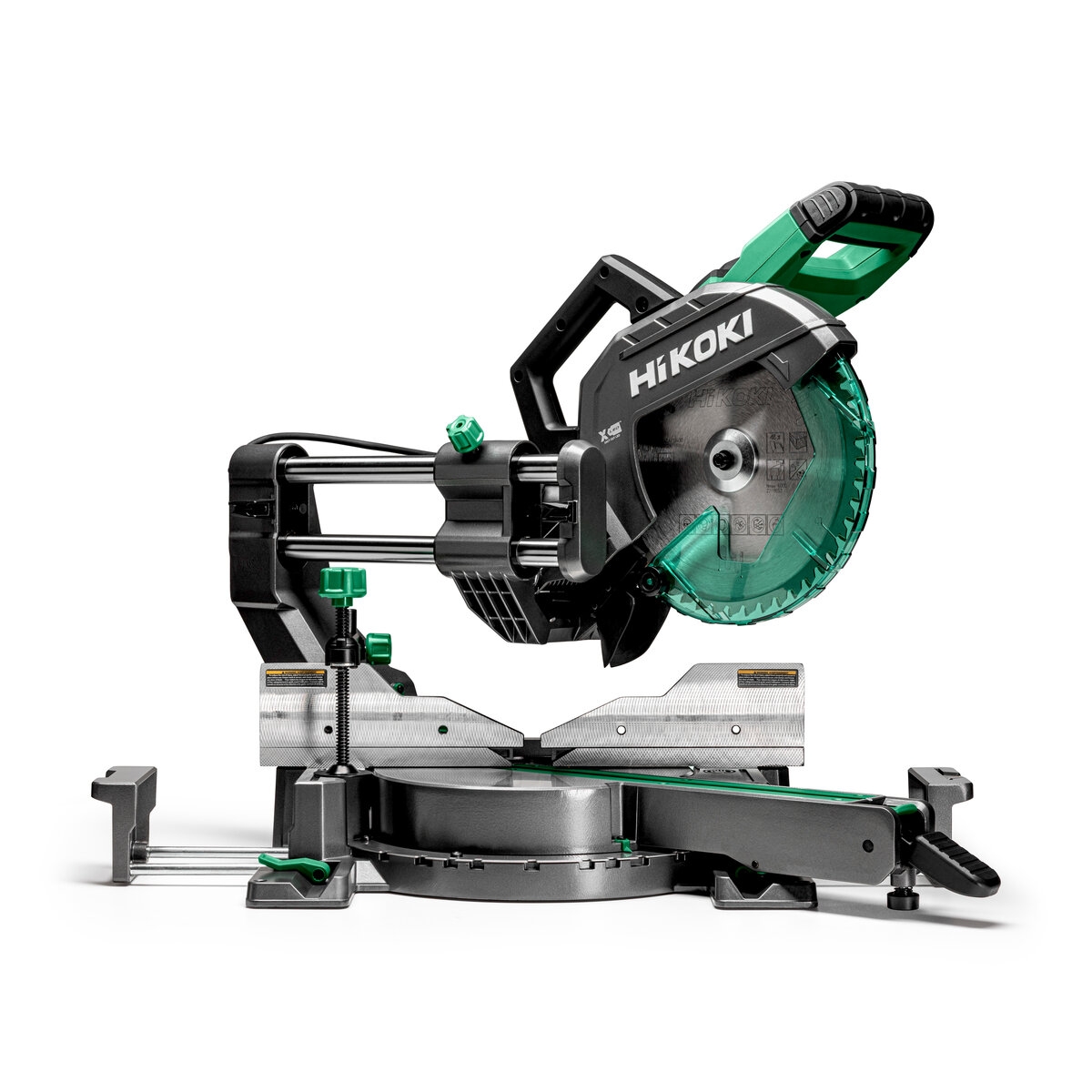

Powerful and precise 254 mm compound mitre saw with compact sliding function

  • Shadow line technology perfectly marks the cutting line without adjument efforts for high-precision cuts

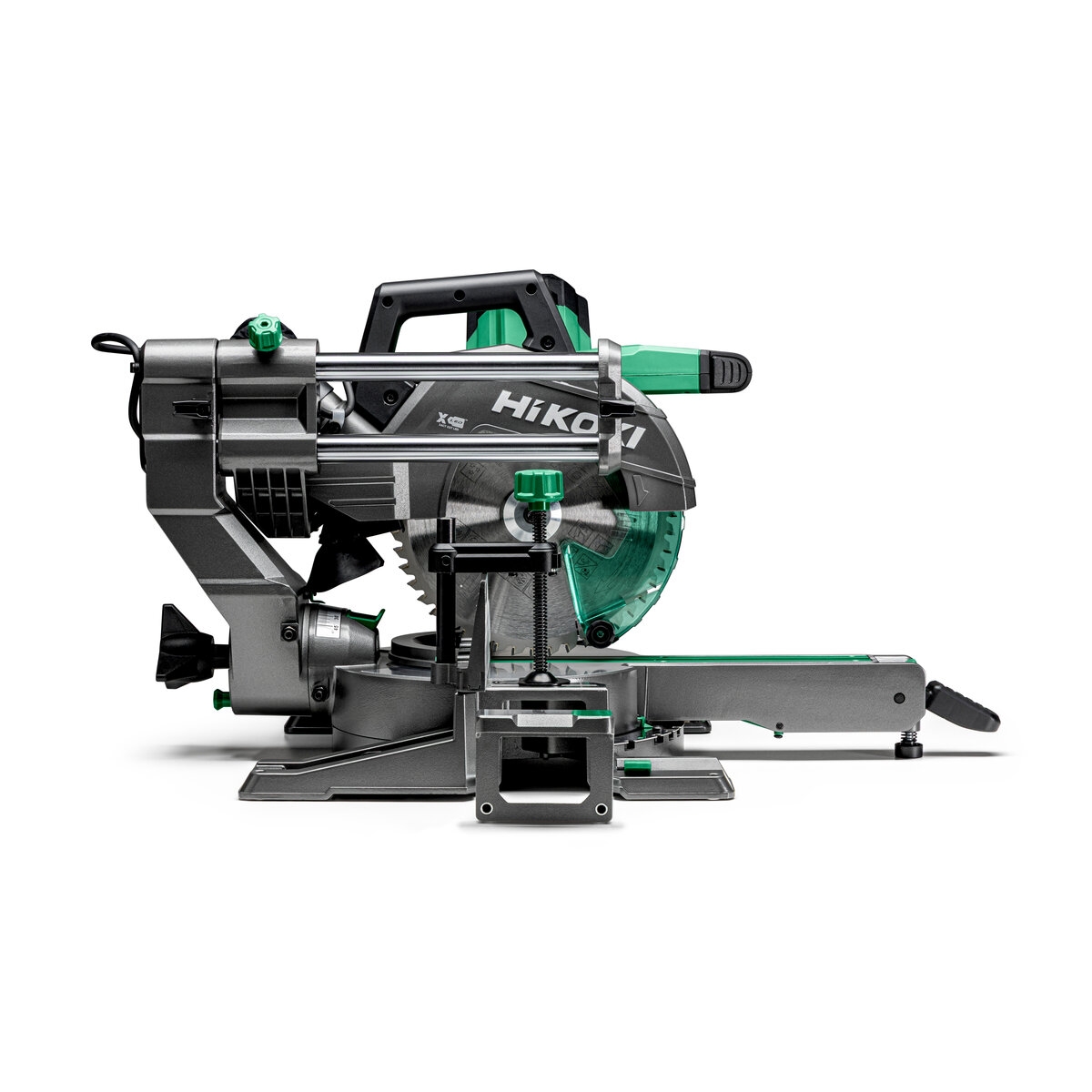

  • Compactly designed sliding function with no space required behind the mitre saw

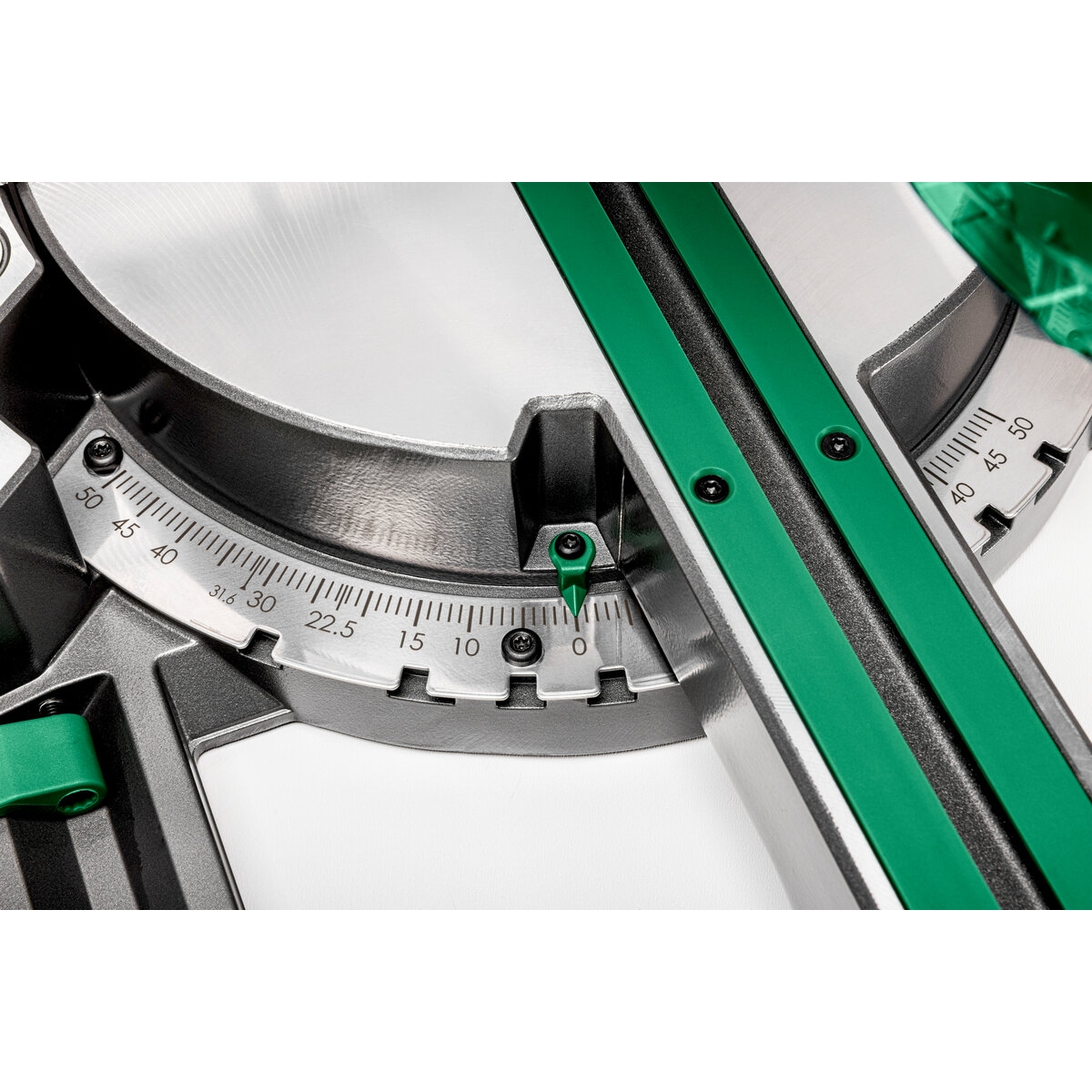

  • Rigid metallic miter scale with nine positive stops for fast and accurate mitre adjustments

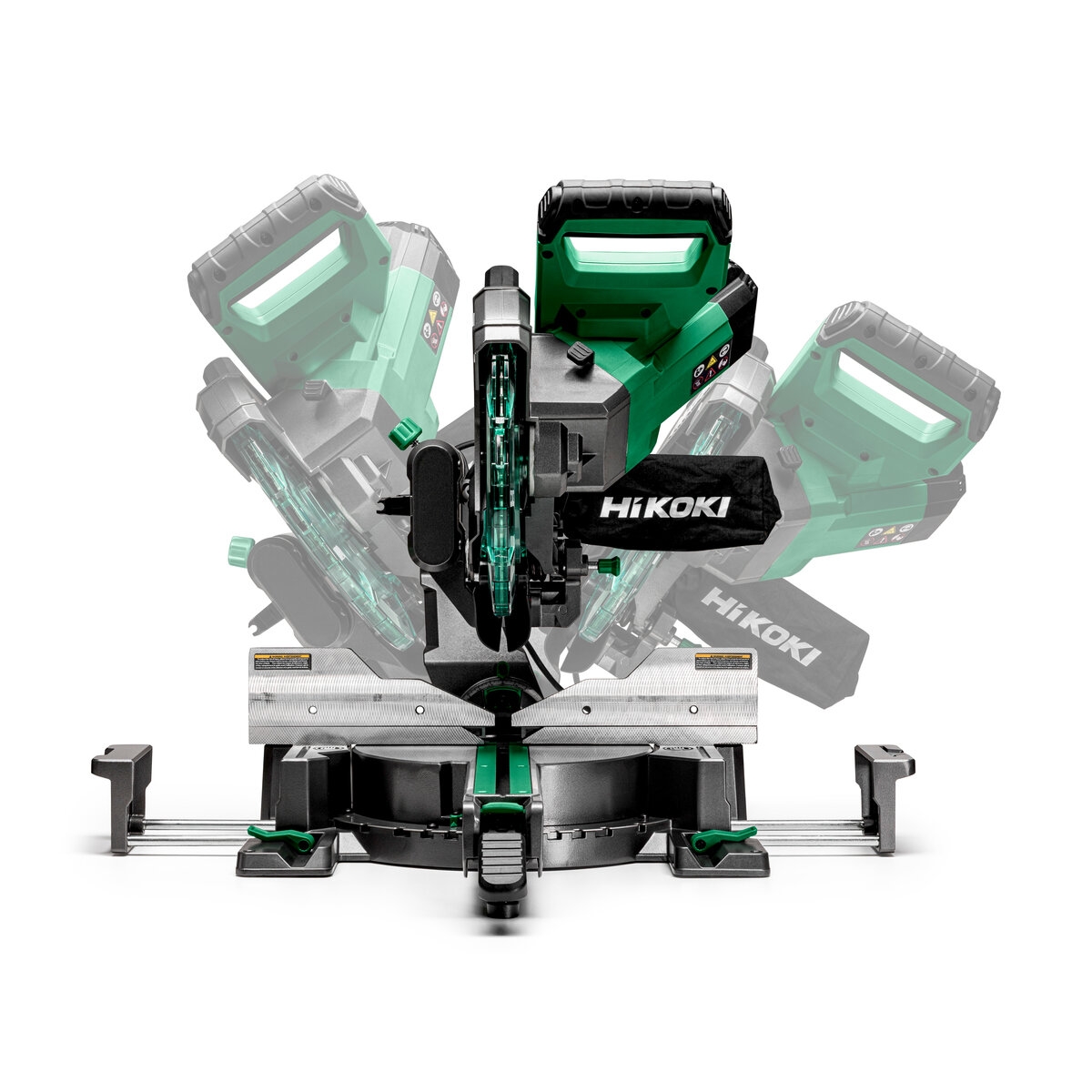

  • Maximum flexibility thanks to rotating table and inclinable saw head on both sides
  • Effective dust extraction via integrated dust collection funnel
  • Implemented brake stops the saw blade quickly for high user safety
  • Soft start for long service life of motor and drive
  • The table can be extended on the right and the left for sawing wide workpieces; right with integrated end stop
  • Quick-action clamp for secure fixing of the work piece

For price information, please visit your country’s website or contact your local dealer.

Find a dealer
More information
Articlenumber
C10FSB2WAZ
EAN
4966376421299
Rated input power
1450 W
Voltage
220 V
Mains frequency
50/60 Hz
Blade diameter
254 mm
Bore size
30 mm
No load speed
4500 /min
Max. cutting dimension (0°)
92 x 305 mm
Max. cutting dimension (bevel left 45°)
48 x 305 mm
Max. cutting dimension (bevel right 45°)
26 x 305 mm
Max. cutting dimension (miter left 45°/bevel left 45°)
48 x 215 mm
Max. cutting dimension (miter right 45°/bevel right 45°)
26 x 215 mm
Bevel function
Dual Bevel
Max. bevel angle (left)
47 °
Max. bevel angle (right)
47 °
Max. miter angle (left)
50
Max. miter angle (right)
50
Tool weight
19 kg
Cable length
2 m

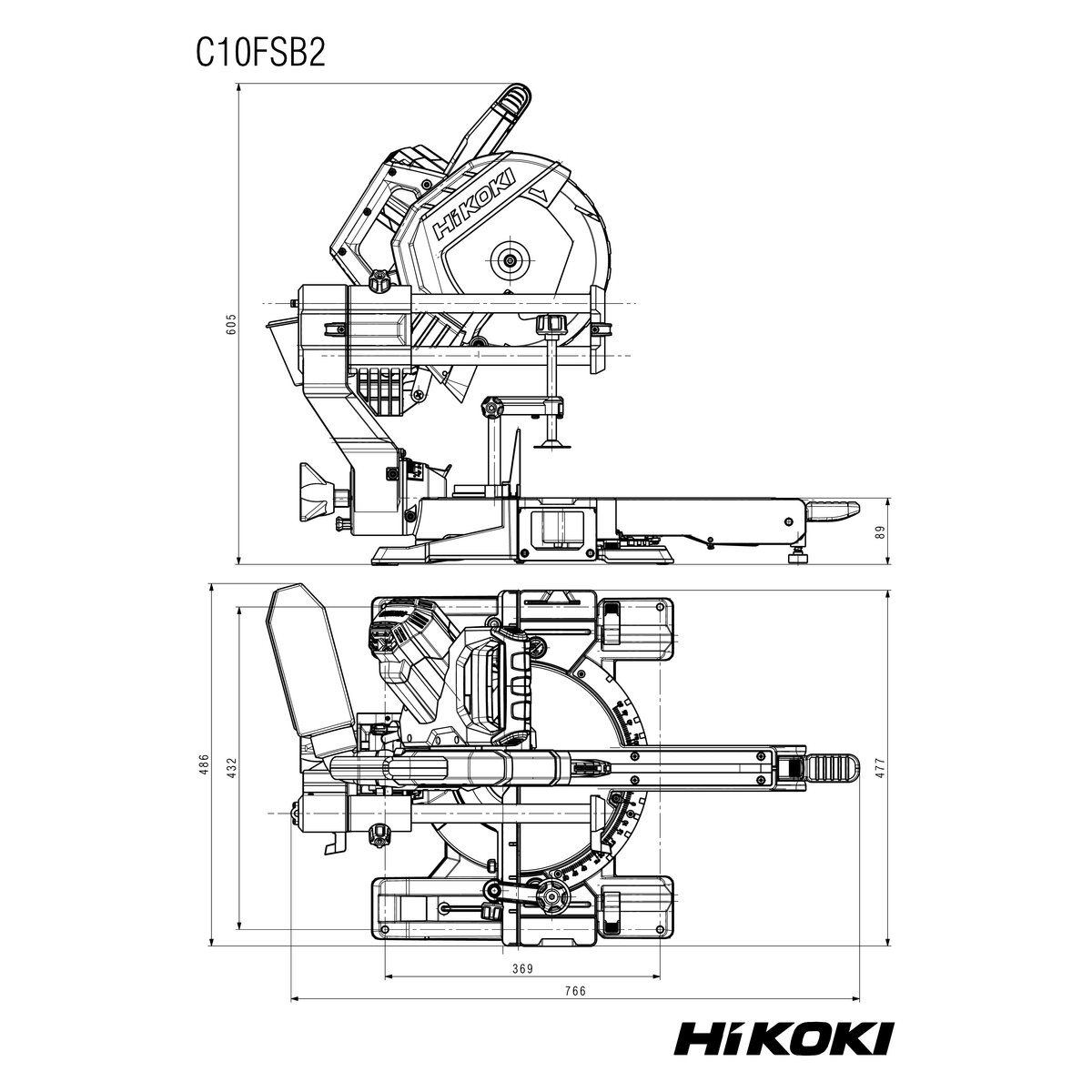

Tool length
766 mm
Tool width
477 mm
Tool height
605 mm
Emission sound pressure
103 dB
Emission sound power
90 dB
Emission uncertainty KpA
3 dB
Warranty (months with registration)
36
Sliding function
Yes
LED shadow line
Yes
Groove cutting
Yes
Compact sliding system
Yes
Table width extension
Yes
LED light
Yes
The actual product may differ from the picture. Please note the product description, technical data and scope of delivery.
  • Saw blade(254mm / 40 teeth)
  • Material clamp
  • Dust bag
  • Hex key
