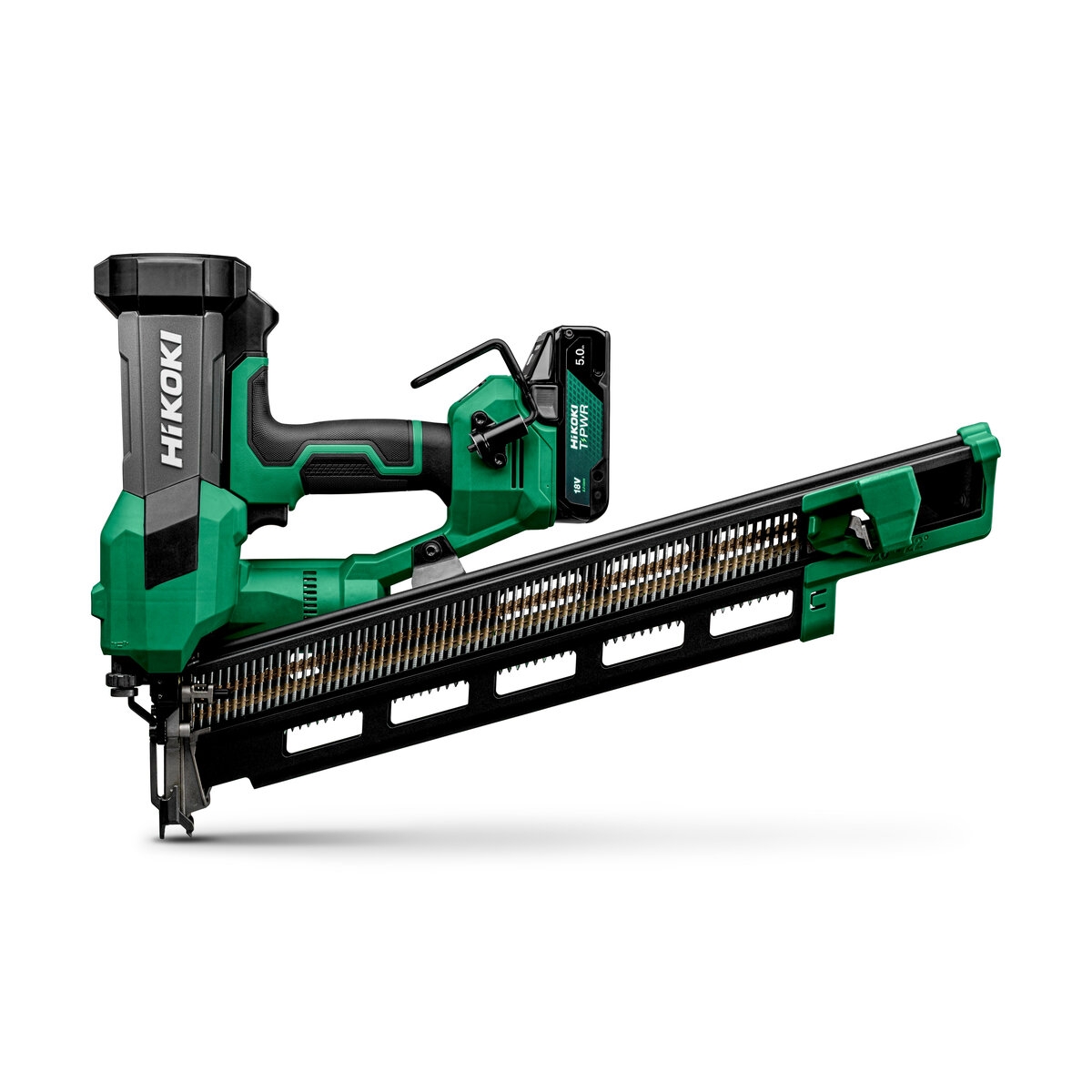

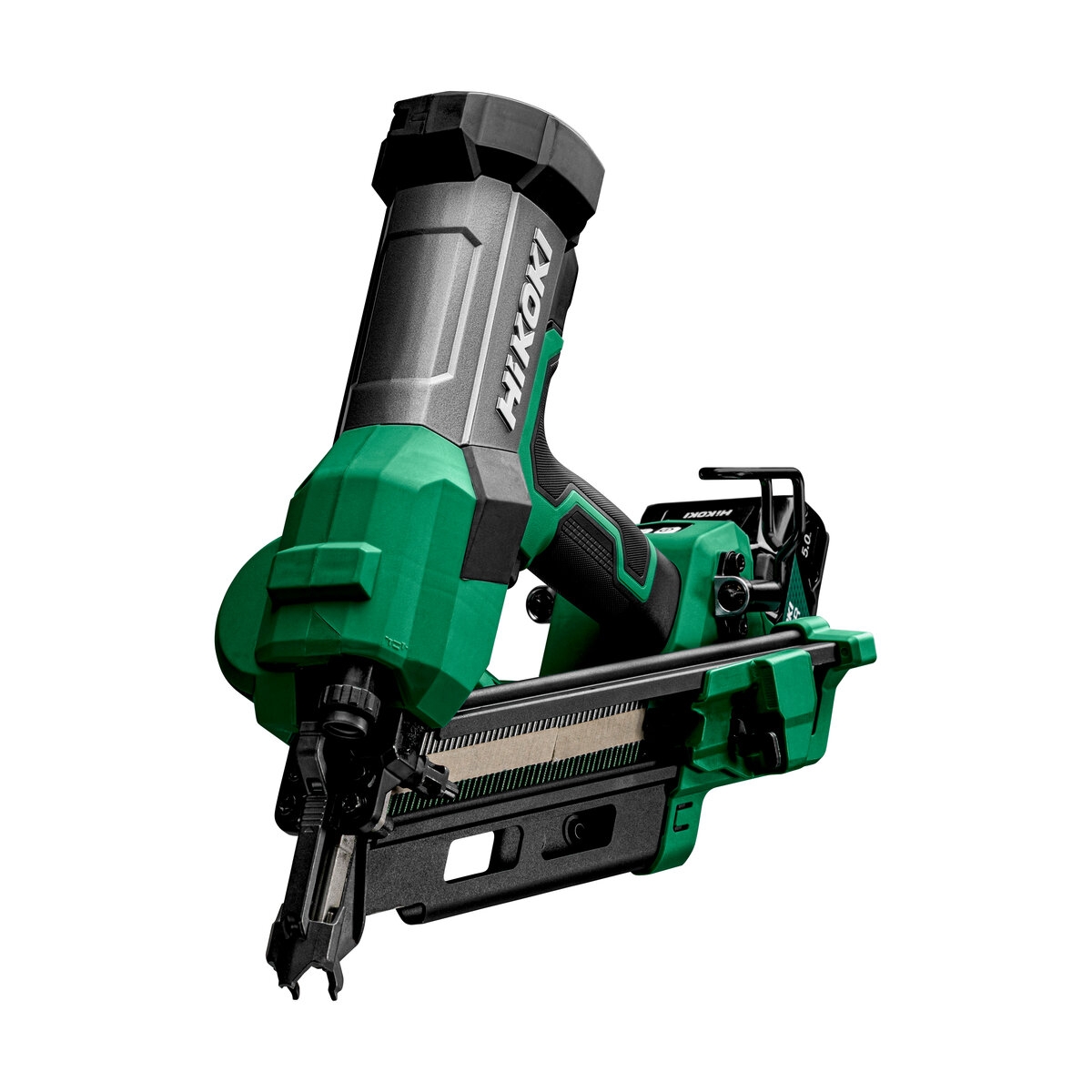

Framing Nailer NR1890DCBW6Z

Worlds lightest 18 V brushless 90 mm framing nailer (34°)

  • High speed to drive up to 4.5 nails per second
  • HiKOKI Air Spring Drive System +: Unique mechanism for highest firing speed, compact design, and maximum service life
  • Gas‑free battery power - no fumes, no hoses, no compressors
  • High-powered to effortlessly drive ring shank nails up to 90mm length into tough materials
  • Ultra-light magnesium components for maximum robustness and lightest weight in its class

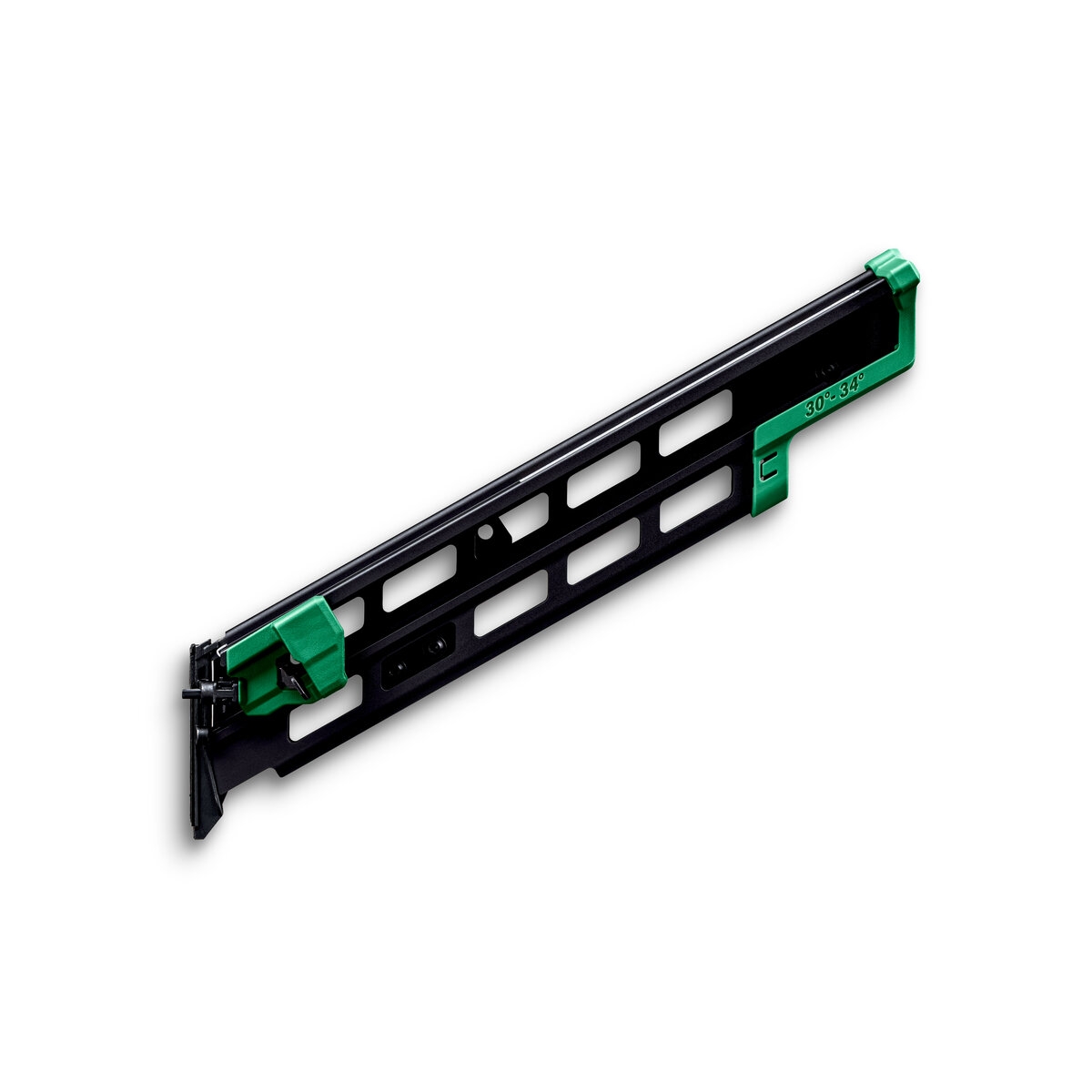

  • Lightweight magazine for quick loading, easy cleaning, and trouble-free operation

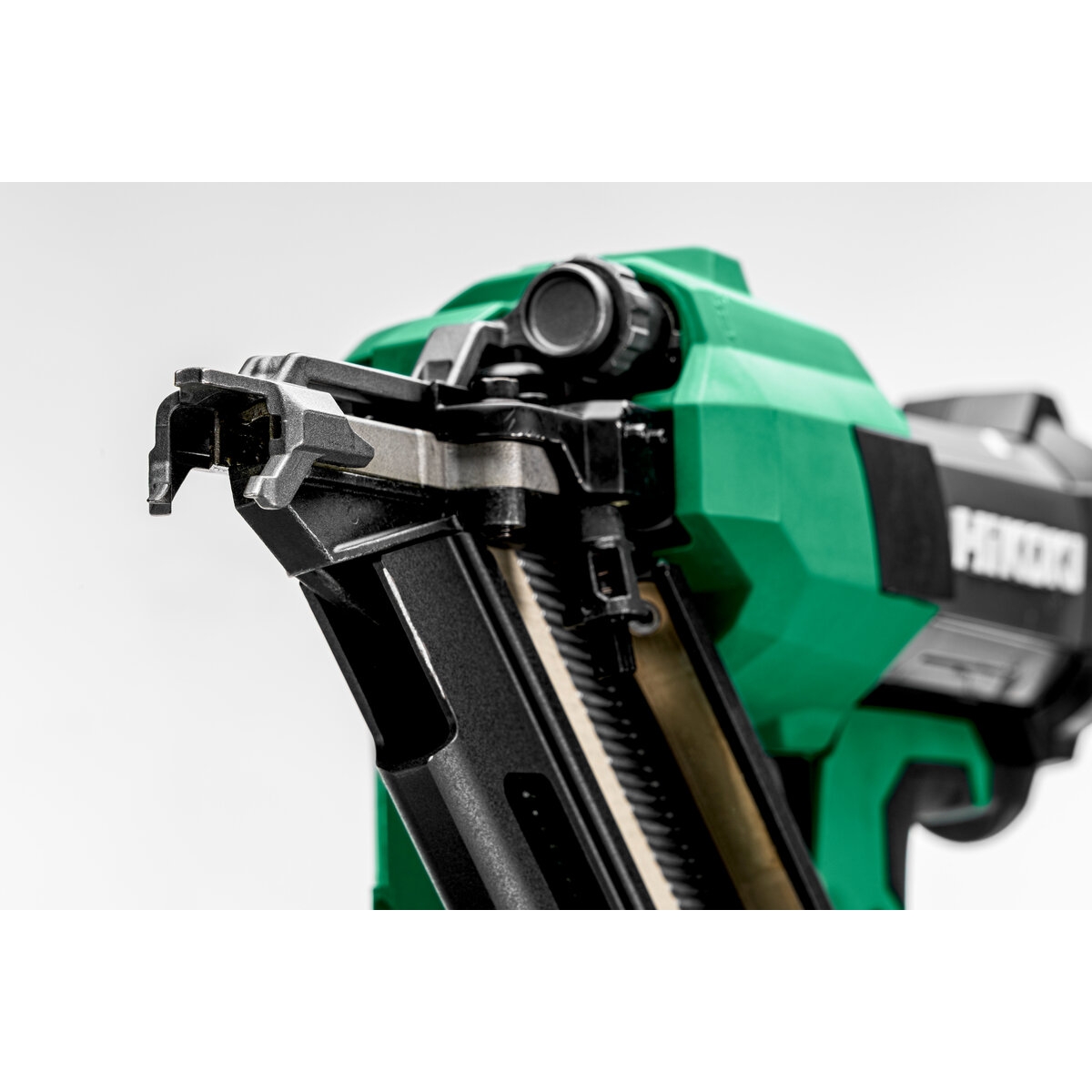

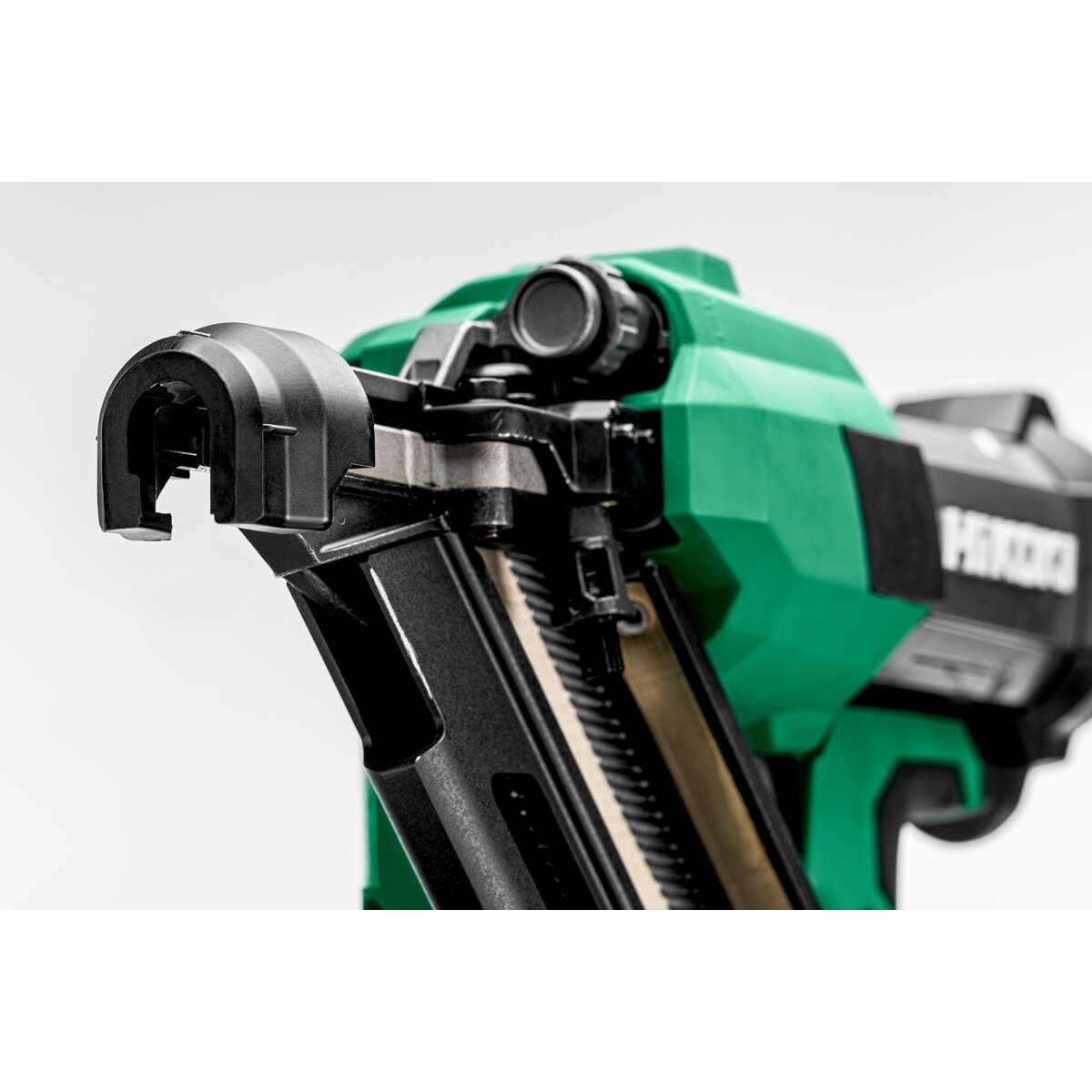

  • Aggressive nose prevents slippage on angled shots, for better skew nailing
  • Electrical dry-fire lockout mechanism activates when a few nails remain, preventing firing to protect the workpiece and flashing the LED light

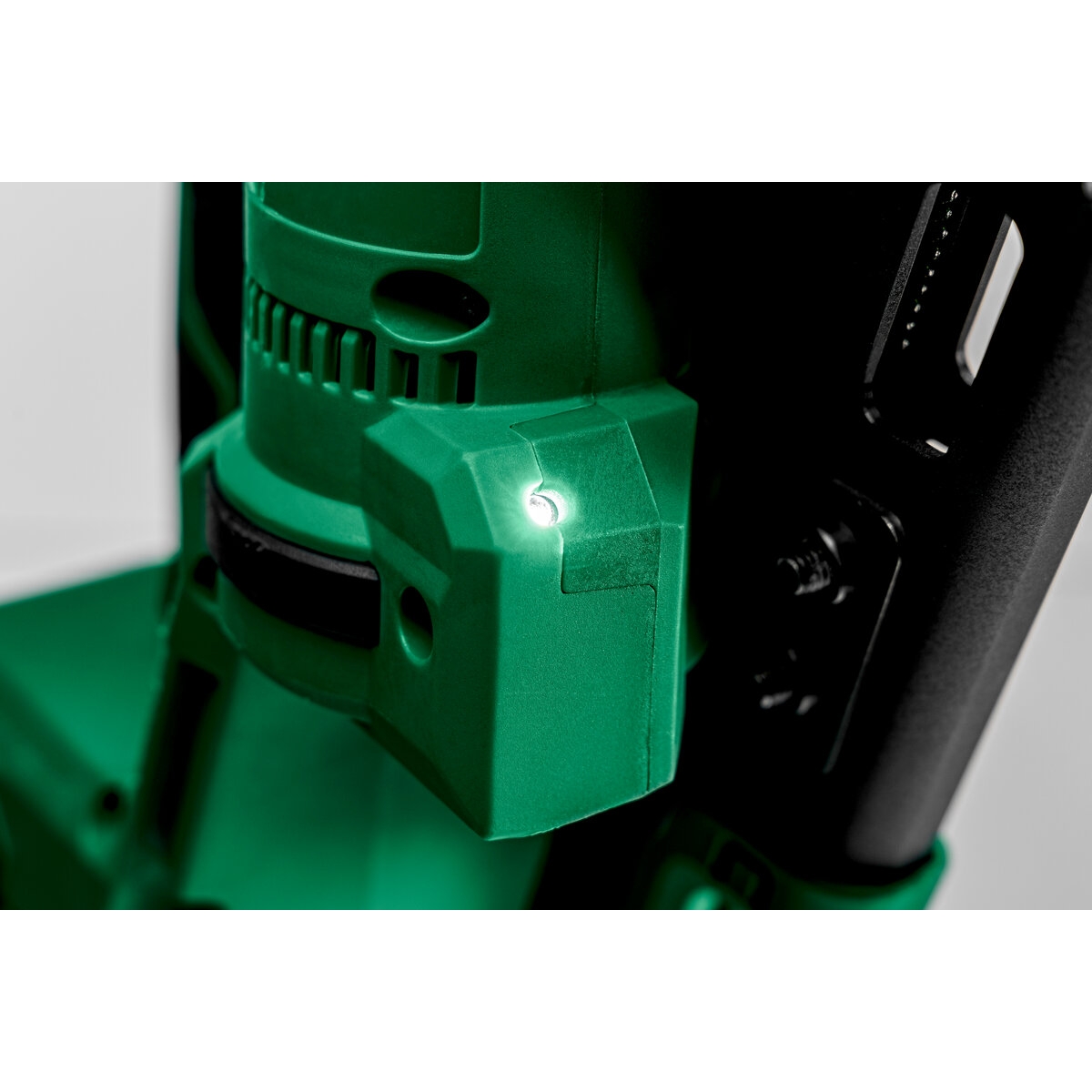

  • Powerful LED light provides excellent visibility for precision in low-light conditions
  • Versatile use on the construction site: Compatible with magazines for framing nailers, metal connector nailers, and duplex nailers
  • Extra service-friendly: common maintenance tasks can be carried out yourself in 5 minutes

For price information, please visit your country’s website or contact your local dealer.

Find a dealer
More information
Articlenumber
NR1890DCBW6Z
Individual Package Quantity
1
EAN
4966376421695
Battery voltage
18 V
Nailing speed
4 /s
Nail collation type
Paper Collated
Nail collation angle
30°(Clipped Head)
Nail length
50 - 90 mm
Nail shank diameter
2.8 - 3.3 mm
Magazin capacity (nails)
54 - 57
Weight (without battery pack)
3.4 kg
Tool length
324 mm
Tool width
139 mm
Tool height
354 mm
Emission sound pressure
92 dB
Emission sound power
105 dB
Emission uncertainty KpA
3 dB
Driving system
DC (Air Spring)
Warranty (months with registration)
36
Depth adjustment
Yes
Contact actuation mode
Yes
Dry-fire lockout
Yes
LED light
Yes
Brushless
Yes
The actual product may differ from the picture. Please note the product description, technical data and scope of delivery.
  • Stackable System Case 4
