Cordless router M3612DAW2Z

36 V Brushless 50 mm plunge router with 6, 8 and 12 mm collet chuck for maximum flexibility

  • World's first full capacity cordless plunge router
  • 6, 8 and 12 mm collet chuck diameters for various routing bits and applications
  • Powerful and durable 36 V Brushless motor for superior cutting speed which outperforms similar AC models
  • High plunge depth of 50 mm for various applications
  • Ergonomic handle for precise cutting and lock-on function for continuous operation
  • Precise scale and turret for easy and exact depth adjustment in the millimeter range
  • Variable speed control to adjust the right speed for the material
Find a dealer
More information
Articlenumber
M3612DAW2Z
EAN
4966376335978
Brake
Yes
Shaft diameter
12 mm
Plunge depth
50 mm
Battery voltage
36 V

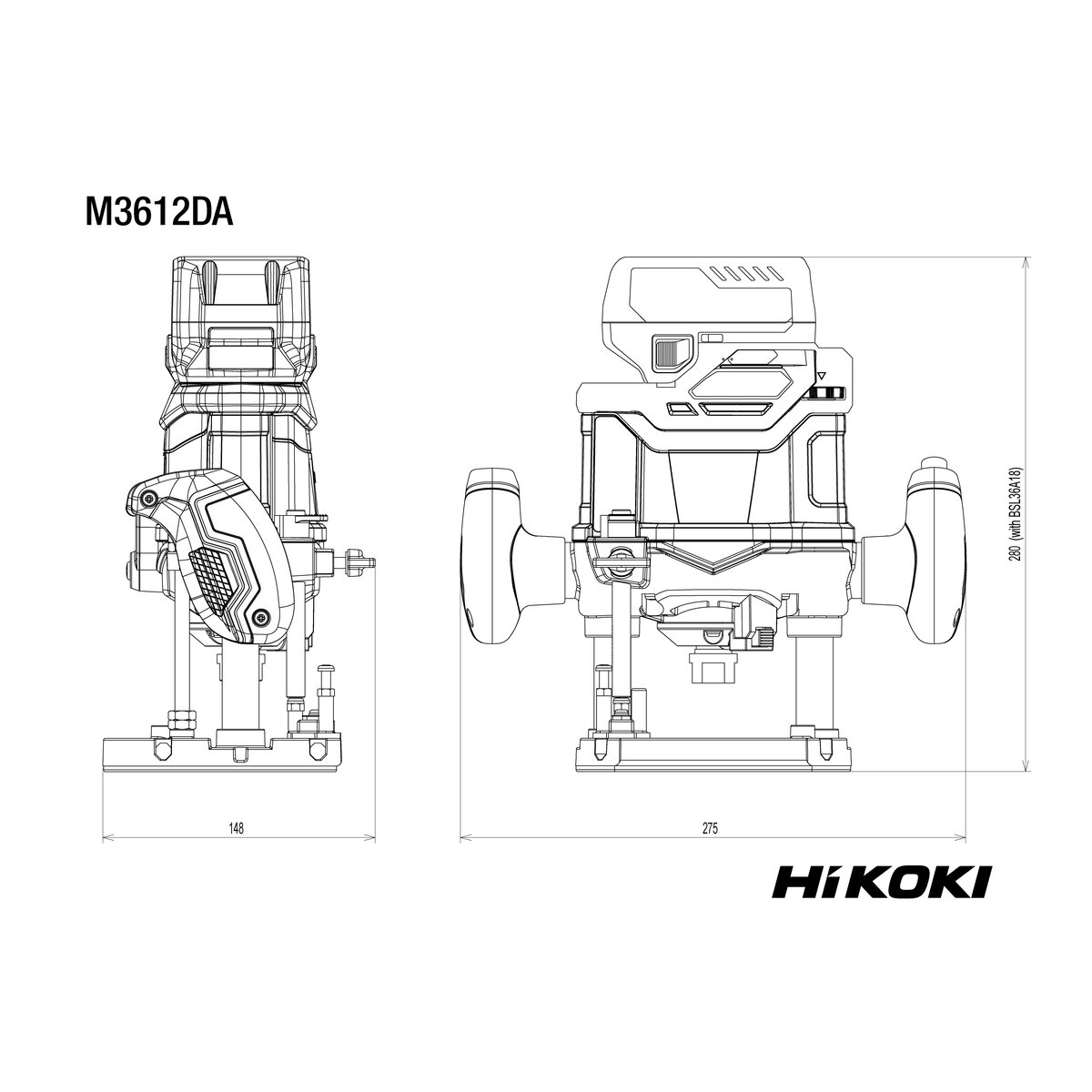

Tool length
275 mm
Tool width
148 mm
Tool height
280 mm
Weight (without battery pack)
3.10 kg
No load speed
11000-25000 /min
Brushless
Yes
Application
Cutting Wood
Vibration
2.5 m/sec²
Vibration uncertainty K
1.5 m/sec²
Emission sound power
97 dB
Emission sound pressure
89 dB
Emission uncertainty KpA
3 dB
LED light
Yes
Spindle lock
Yes
Warranty (months with registration)
36
The actual product may differ from the picture. Please note the product description, technical data and scope of delivery.
  • Stackable System Case 4
  • 23mm Wrench
  • Collet chuck(12mm)
  • Collet chuck(8mm)
  • Chuck sleeve(12x6mm)
  • Straight guide
  • Template guide
  • Dust Collector set
