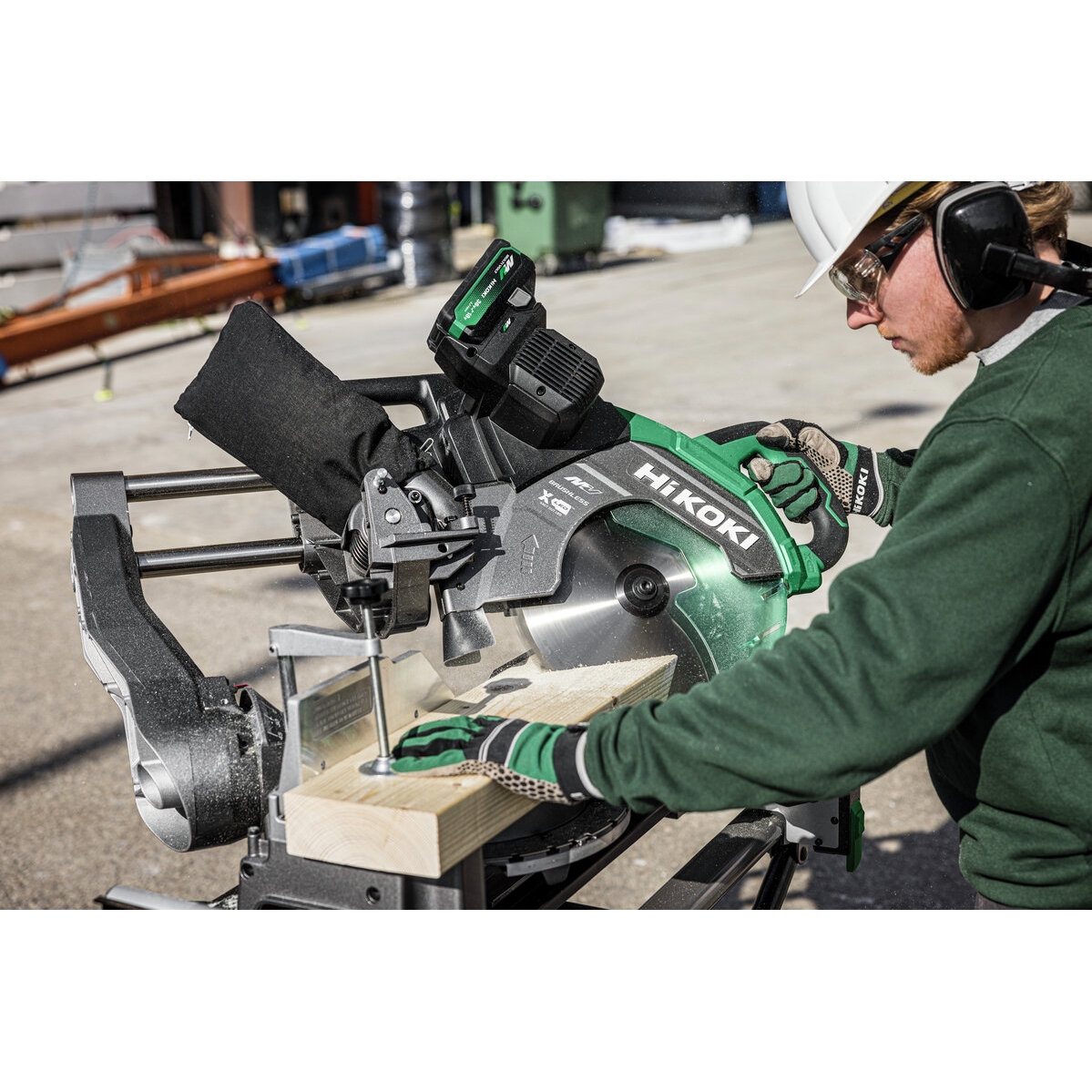

Cordless miter saw C3612DRAW4Z

36V compact 305 mm sliding compound mitre saw with dual bevel

  • Dual bevel with 45° to the left and right
  • Convinient bevel adjustment on the front
  • The table can be extended on the right and the left for sawing wide workpieces
  • Positive stops for fast and accurate mitre adjustments
  • Shadow line technology perfectly marks the cutting line without adjument efforts for high-precision cuts
  • Torque Boost motor technology: Auto switch mode for fastest cuts and automatic detection of the right motor setting. Torque mode for powerful and battery saving cuts

For price information, please visit your country’s website or contact your local dealer.

Find a dealer
More information
Articlenumber
C3612DRAW4Z
Battery voltage
36 V
Blade diameter
305 mm
Bore size
30 mm
No load speed
4000 /min
Max. cutting dimension (0°)
105 x 312 mm
Max. cutting dimension (bevel left 45°)
68 x 312 mm
Max. cutting dimension (bevel right 45°)
43 x 312 mm
Max. cutting dimension (miter left 45°/bevel left 45°)
68 x 220 mm
Max. cutting dimension (miter right 45°/bevel right 45°)
43 x 220 mm
Max. cutting dimension (miter left 31°/bevel right 45°)
43 x 265 mm
Max. cutting dimension (miter right 31°/bevel left 45°)
68 x 265 mm
Bevel function
Dual Bevel
Max. bevel angle (left)
45 °
Max. bevel angle (right)
45 °
Max. miter angle (left)
0-45
Max. miter angle (right)
0-57
Weight (without battery pack)
25.20 kg
Weight (with battery pack)
25.9 kg
Tool length
873 mm
Tool width
916 mm
Tool height
724 mm
Motor type
Brushless(Torque Boost Technology)
Sliding function
Yes
LED shadow line
Yes
Groove cutting
Yes
Compact sliding system
Yes
Table width extension
Yes
LED light
Yes
EAN
4966376412990
The actual product may differ from the picture. Please note the product description, technical data and scope of delivery.
  • Dust bag
  • Vise Assembly
  • 8mm Hex. bar wrench
  • Holder
  • TCT SAW BLADE 305mm-D30 HOLE-NT60
  • Carton Box
