Cordless circular saw C3606DBW2Z

36 V Brushless 165 mm circular saw with 66 mm cutting depth

  • Equipped with innovative deep cut technology for higher cutting depth with standard saw blade
  • High bevel capacity from -5° to 45° for a wide range of applications
  • Optimal saw blade visibility from both sides guarantees high-precision cuts
  • Very compact and lightweight for maximum flexibility
  • Fast stopping electric brake and kickback protection for high user safety
  • MULTI VOLT battery technology: AC power, DC freedom
Find a dealer
More information
Articlenumber
C3606DBW2Z
Blade diameter
165 mm
Bore size
20 mm
No load speed (v1)
5600 /min
No load speed
2000/4300 /min
Max. cutting depth (0°)
66 mm
Max. cutting depth (45°)
45 mm
Maximum bevel angle
45 °
Weight (without battery pack)
2.70 kg
Weight (with battery pack)
3.4 kg

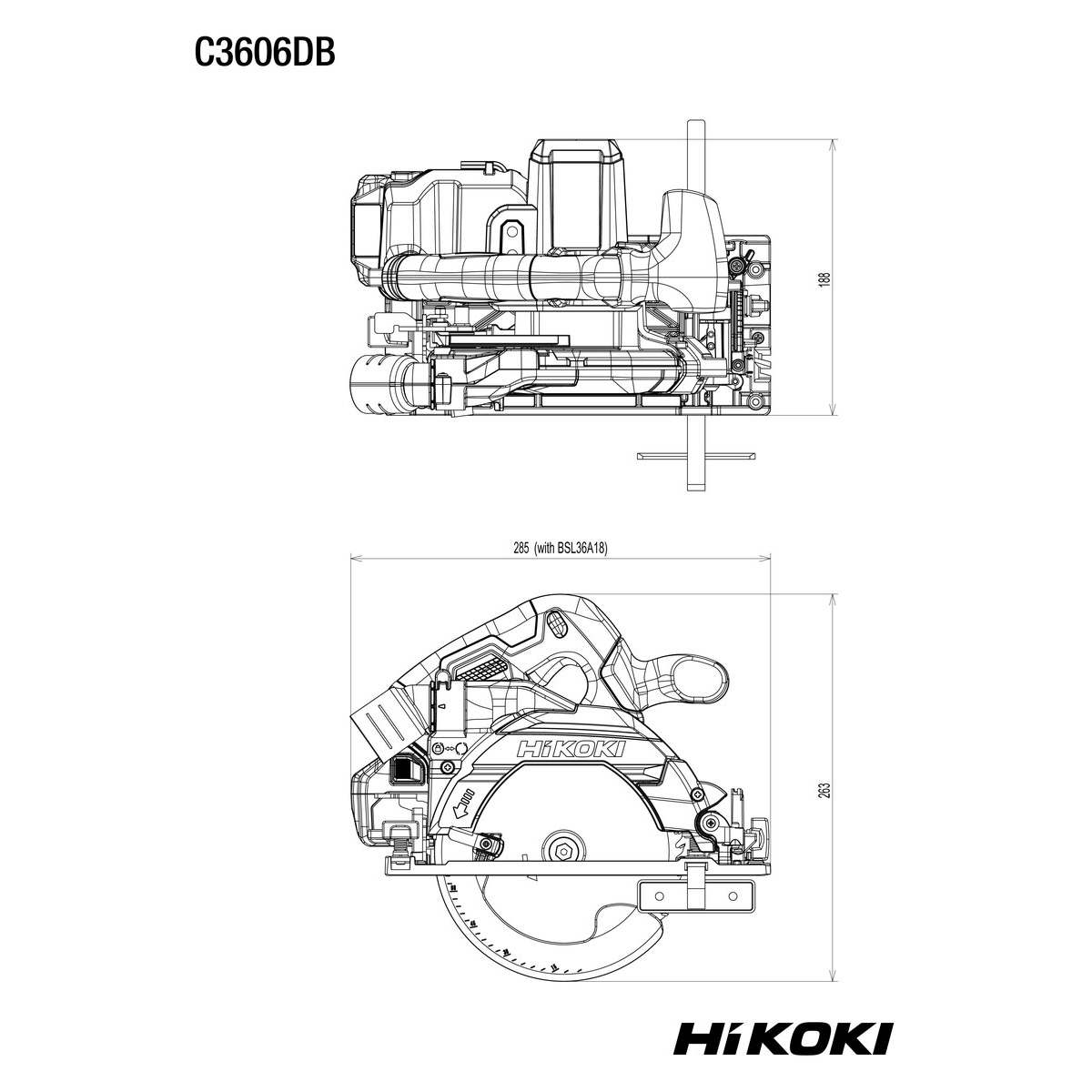

Tool length
285 mm
Tool width
188 mm
Tool height
263 mm
Dust box attachment
None
Material: gear cover
Aluminum Die Cast
Brake
Yes
Kick back protection
Yes
Soft start
Yes
Chip blower
Yes
LED light
Yes
EAN
4 966 376 408 160
Brushless
Yes
The actual product may differ from the picture. Please note the product description, technical data and scope of delivery.
  • Saw blade
  • 5mm Hex bar wrench
  • Guide
  • Stackable System Case 4
