HiKOKI Miter Saw C3607DRAW4Z

HiKOKI Miter Saw C3607DRAW4Z

36 V Brushless 190 mm sliding compound mitre saw

  • Integrated laser perfectly marks the cutting line for high-precision cuts
  • Compact sliding system with double guides increases stability and prevents extension to the rear when working close to the wall
  • Positive stops for fast and accurate mitre adjustments
  • Integrated LED spotlight for a clear view of the work surface
  • Compact and lightweight saw for optimal portability
  • Large soft-touch handle dampens vibrations for high user comfort
  • MULTI VOLT battery technology: AC power, DC freedom

For price information, please visit your country’s website or contact your local dealer.

Find a dealer
Articlenumber
C3607DRAW4Z
JAN/EAN code
4 966 376 337 477
Blade Diameter
185 mm
Slide
Yes
Bevel Function
Dual Bevel
Positive Stops
Yes
Maximum cutting Dimension (0°)
58 mm x 310 mm
Maximum cutting Dimension (Bevel Left 45°)
39 mm x 310 mm
Maximum cutting Dimension (Bevel Right 45°)
16 mm x 310 mm
Maximum cutting Dimension (Miter Left 45°/Bevel Left 45°)
39 mm x 218 mm
Maximum cutting Dimension (Miter Left 31°/Bevel Right 45°)
16 mm x 258 mm
Maximum cutting Dimension (Miter Right 45°/Bevel Right 45°)
16 mm x 218 mm
Maximum cutting Dimension (Miter Right 31°/Bevel Left 45°)
x
Maximum cutting Dimension (Maximum Miter Angle)
x
No Load Speed from
4 000 /min
Laser Marker
Yes
LED Lighting System
Yes
Driving System
V-Belt+Timing Belt
Groove Cutting
Yes
Sub Table
Yes
Constant Speed Control
Yes
Mount Hole Diameter
20 mm
Compact Sliding System
Yes
Maximum Bevel Angle (Left)
45 mm
Maximum Bevel Angle (Right)
45 mm
Miter angle (Left)
45 °
Miter angle (Right)
57 °
Sub Fence (Left)
Slide type
Sub Fence (Right)
Plug type
Batteries Compatible
BSL36A18, BSL36B18, BSL36C18, BSL36A18B, BSL36B18B, BSL36A18BX, BSL36B18BX
Battery Voltage (DC)
36 V
Motor Type
Brushless
Weight
15,4 kg
Tool Length
780 mm
Tool Width
830 mm
Tool Height
484 mm

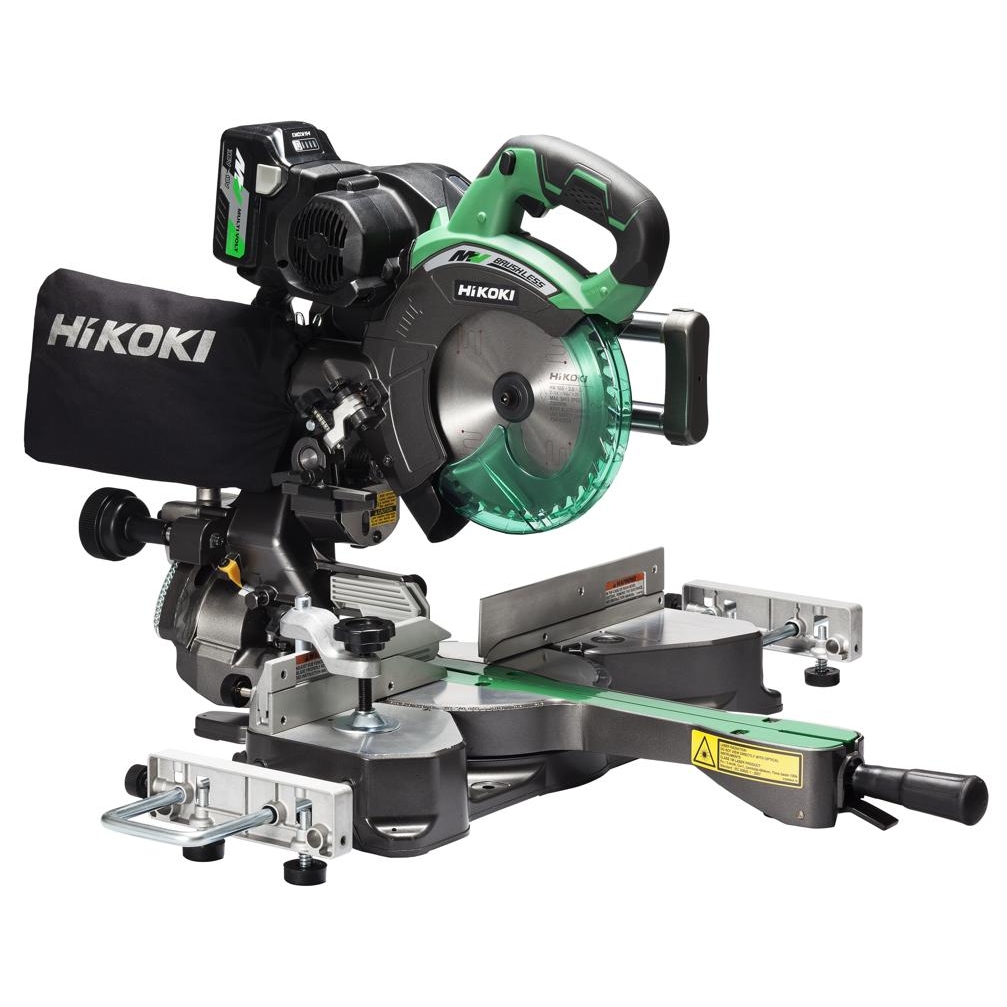

The actual product may differ from the picture. Please note the product description, technical data and scope of delivery.
  • TCT saw blade 185 mm(for wood cutting)
  • Dust bag
  • Side handle
  • Sub table ass’y
  • Holder
  • Carton Box
